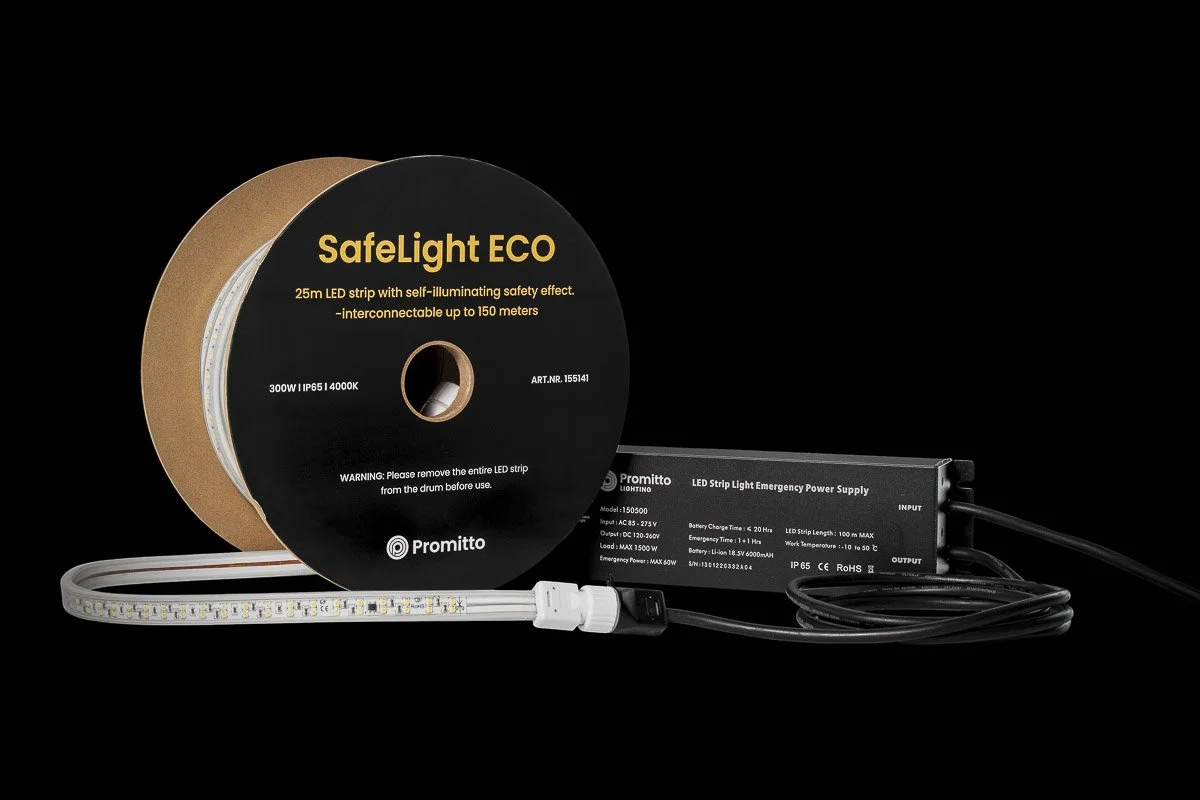

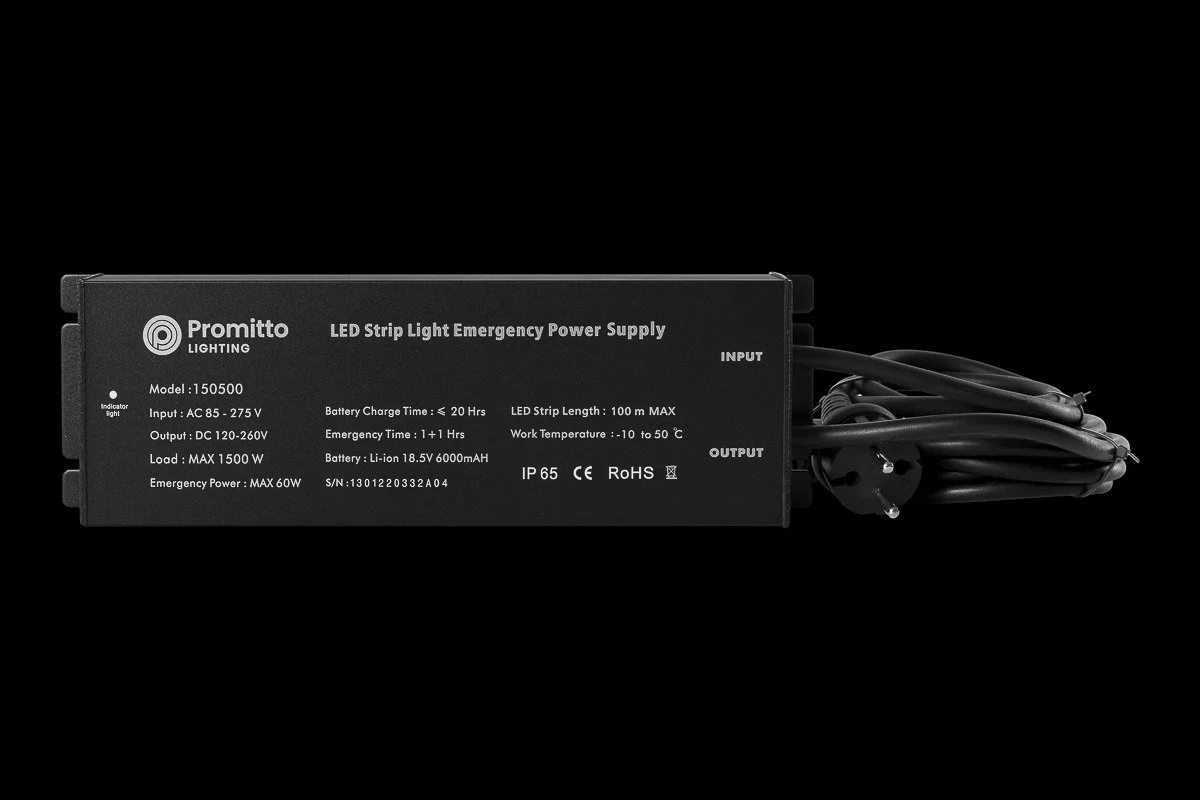

As an accessorie you can add our LED Strip Light Emergency Power Supply to provide emergency lighting in the event of a power outage.

In the event of a power failure, the emergency light module will switch to battery operation and the LED light will illuminate at 10% of the original brightness. The device is approved for use in both dry and damp environments, and with a fully charged battery, the device will provide 1 + 1 hour of emergency lighting. After 1 hour, the device switches off automatically.

If a new voltage drop occurs, the unit will be active for another 1 hour. The battery function must be tested regularly.

Easy installation

• The emergency light module can only be connected to our M-Flex, SafeLight or SafeLight ECO LED strips M-Flex, SafeLight or SafeLight ECO LED strips

• The battery can be attached to the substrate

• Let the battery charge for at least 12 hours before use

Charging the batery

• The battery in the emergency light module is charged automatically when it is connected to power.

• The LED strip does not need to be connected to charge the battery.

• If the module gets hot, interrupt charging and disconnect the LED strip. Allow the battery to cool before continuing.

Storage

• Avoid contact with corrosive substances and do not expose the battery to heat or fire.

• The battery should be charged before storing.

• Avoid storing an empty battery.

• Recommended storage temperature is 0 to 30 ° C

Transport

• Handle with care during loading and unloading as well as during transport.

• Do not transport the emergency lighting battery unprotected together with flammable and explosive goods or sharp metal objects.

Service

• When changing the battery, the power must always be off.

• The battery should be serviced within 6 months.

LED indikator

The emergency light battery module has a LED indicator that shows the status of the device. These are:

Red constant light:                    The device is charging.
Green constant light:                  The device is fully charged.
Flashing green (1Hz):                  Power disconnected - Emergency function is activated
Fast flashing green (3Hz):     The device needs its monthly check
Fast flashing green (5Hz):     The device needs its yearly check
Flashing red:                               System error. Service required.

If the emergency function is in operation and the green light stops illuminating, the battery is empty.
